2K mixing equipment

Spraymaq 2K Mixing Equipment is the ideal choice for those looking for accurate and efficient results in their coating projects. With advanced technology, our equipment provides homogeneous and consistent mixes in every application

Cobra 2K

Ideal for polyester.

The Cobra 2K is an innovative pump specially designed for processing polyester product in the AirCoat process. During processing, pre-mixed hardener resin (component 1) and accelerator resin (component 2) are brought together and homogenized in a 1:1 mixing ratio. This ensures that only the amount of product that is actually processed is always mixed. The premixed components 1 and 2 can be stored for long periods of time without any problems. The Cobra 2K is an ideal, simple and economical system for professional polyester application.

Features
Mixing accuracy ± 10%
Hydraulic zone pipe connection G. 1/4″
Product temperature 10 – 80 °C
Air inlet pressure 2.5 – 6 bar
Ambient temperature 10 – 60 °C
Product PH value 3.5 – 9 pH
Weight 36 kg
Pressure ratio 40:1
Maximum operating pressure 250 bar
Number of strokes max. 200DH/min
Volumetric flow rate per double stroke 10 cm³/DH
Fixed mixing ratio 1:1
Max. acoustic level. 74 dB(A)
Air inlet Ø min. 13 mm
Spraymaq|2K/3K mixing equipment

TwinControl, low and high pressure

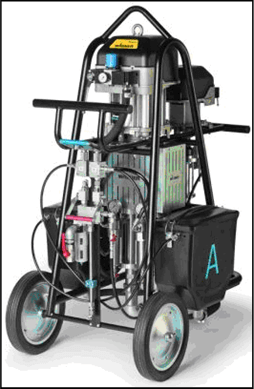

The WAGNER TwinControl is a unique machine for processing two-component coating materials. Wherever high flexibility, mobile use and few paint changes are required, the TwinControl stands out due to its high cost-effectiveness, compact design and easy handling.

It is extremely suitable for a number of applications, such as processing highly viscous materials or high conveying performances.

Flow measurement without contact with the product by means of a patented magnetic lift sensor and, together with the excellent WAGNER IceBreaker pumps, offers unparalleled precision and reliability.

The fully automatically controlled cleaning process is part of the overall concept that facilitates operation, as is the simple adaptation of the equipment parameters to the respective application.

Different versions with different equipment depending on the work to be carried out

Spraymaq|2K/3K mixing equipment

Twin Control Mixing Equipment Range

Spraymaq|2K/3K mixing equipment

Mixing accuracy ± 2%

Recommended pump speed 30 cycles / minute.

  • Low, medium and high viscosity products
  • Waterborne and solventborne products
  • 2 K epoxy, polyurethane products
  • 2 K high solids products

Protec 2K Fixed Mechanical Mixers

Simple mechanical mixer, compact and portable for the treatment of anti-corrosive paints

dense and high solid products. Simple operation, similar to a single-component unit

Mixing ratio 1:1 to 4:1,

up to 500 bar and 5.7 L/min.

Optional with cleaning pump and heating set.

Features

Easy to clean mixing block, hose and guns. It allows to work with shorter catalyzing times. Can also be used with remote mixer.
Fluid sections for components A and B can be chosen in mixing ratios 1:1, 2:1, 3:1 and 4:1.
Stable and spacious 27 l product containers with a wide suction cross section and easy to clean.
Sturdy carts with large wheels and crane hooks and space for additional components and accessories.
Product heater (optional) for improved spraying of high viscosity products.

Stable and spacious 27 l product containers with a wide suction cross section and easy to clean.
Sturdy carts with large wheels and crane hooks and space for additional components and accessories.
Product heater (optional) for improved spraying of high viscosity products.

Spraymaq|2K/3K mixing equipment
Spraymaq|2K/3K mixing equipment

Our 2K mixing equipment

We leave you with the section and catalog of 2K painting machines (2K mixing equipment). See more details and all sales prices of our products and accessories in the phone 976 144 898

Request for information

2K Mixing Equipment: Accurate and Efficient Mixing for your Coating Projects

In the coating and paint industry, achieving accurate and homogeneous mixtures is crucial for high quality results. Spraymaq is proud to introduce its line of 2K Mixing Equipment, designed to deliver precision and efficiency in every application. In this article, we will explore how our equipment has become the preferred choice of professionals and artists looking to achieve outstanding results in their coating projects

Cobra 2K and TwinControl: Advanced Technology for the Best Blend

Our 2K Mixer series includes two outstanding models: Cobra 2K and TwinControl. These units are equipped with state-of-the-art technology that ensures accurate and reliable mixing. The Cobra 2K combines the power of low pressure with the efficiency of high pressure, allowing you to adjust the pressure to the specific needs of your application. This ensures even and precise distribution of 2K components, resulting in a flawless, high-quality finish. The TwinControl, on the other hand, has been designed with advanced ratio and flow control, offering precise mixing of two-component materials. With this equipment, mixing accuracy is guaranteed, eliminating any concerns about component ratio deviations

Twin Control Mixing Equipment Range: Adaptability for every Need

At Spraymaq, we understand that every project is unique and requires specific solutions. That’s why our range of TwinControl Mixing Equipment offers a wide variety of options to suit your needs. From portable equipment that provides flexibility for mobile jobs to stationary systems for high-volume industrial applications, each unit has been designed to provide maximum adaptability and ease of use. The ability to adjust the mixing ratio and flow rate will allow you to achieve consistent results on every project, regardless of its complexity or size. With TwinControl Mixing Equipment, you’ll be prepared to tackle any mixing challenge with confidence

Protec 2K Fixed Mechanical Mixers: Efficiency in Industrial Projects

For those industrial projects that require a fixed and reliable solution, our Protec 2K Fixed Mechanical Mixers are the ideal choice. These machines have been specially designed to operate continuously and accurately in high-volume industrial applications. Their robust and durable structure guarantees homogeneous and stable mixing, which translates into efficient and high quality production. With Protec 2K Stationary Mechanical Mixers, you can maximize productivity and achieve exceptional performance in your coating process

Achieve Impeccable Results Today!

Are you ready to take the accuracy and efficiency of your coating applications to the next level? Look no further. Our line of Spraymaq 2K Mixing Equipment offers you the advanced technology you need to achieve precise, homogeneous mixes on every project. Whether you’re in the industrial or artistic field, our equipment will give you the confidence and performance you need to achieve flawless results. Power up your coating projects and discover the excellence Spraymaq 2K Mixing Equipment can bring to your work today!
