Our spray booths guarantee high quality finishes, production efficiency and a safe working environment. From small parts to large-scale projects, rely on Spraymaq spray booths to achieve excellence in your industrial finishes
It consists of sandwich panels, made up of two profiled steel sheets and a polyurethane foam core of 40 kg/m3 density with a thickness of 40 mm, supported by commercial structural profiles

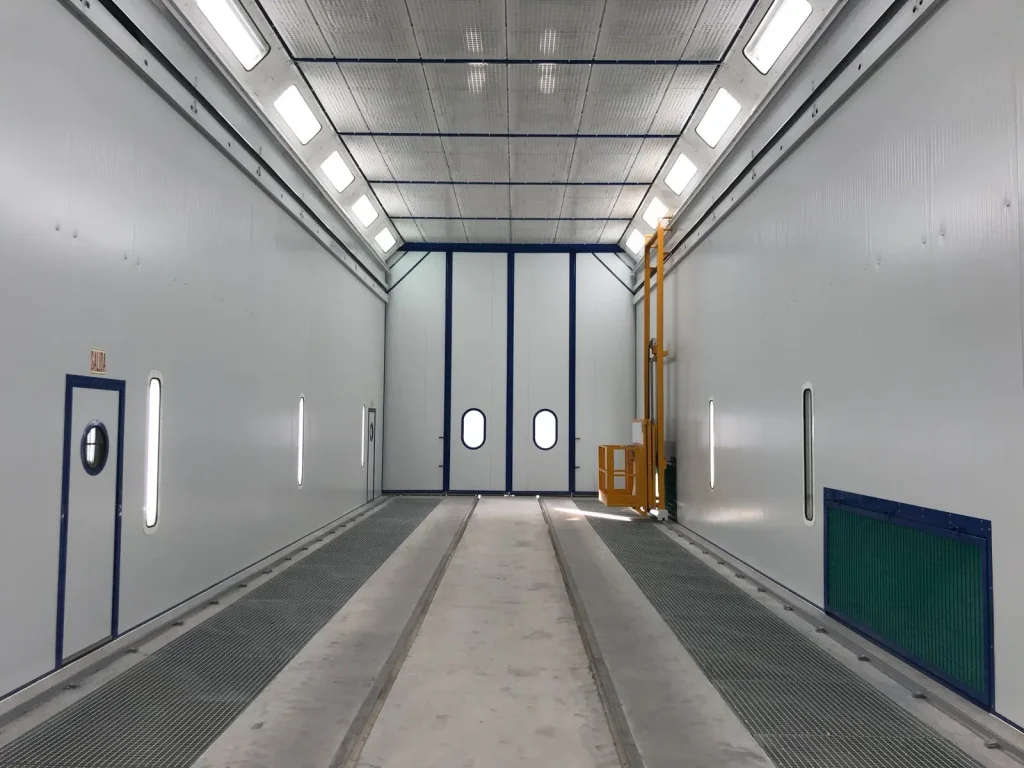

It is realized by means of LED luminaires equipped with watertight screens connected on the outside, and separated from the interior by a glass, located longitudinally in the upper corners of the ceiling in the form of a chamfer, as well as on the side walls in order to illuminate the lower part of the booth.
The final distribution of the lighting is designed according to the needs of each project, to achieve the best lighting in the required areas.

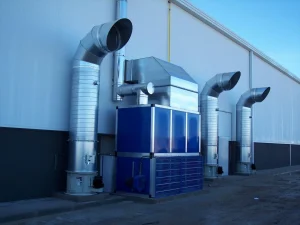

Their function is to introduce and create a dust-free atmosphere of homogeneous temperature inside the enclosure. The air taken from the outside is driven by centrifugal turbines and heated by passing through a heat exchanger, oil, natural gas or propane burner. Air exchanger or air vein versions are available

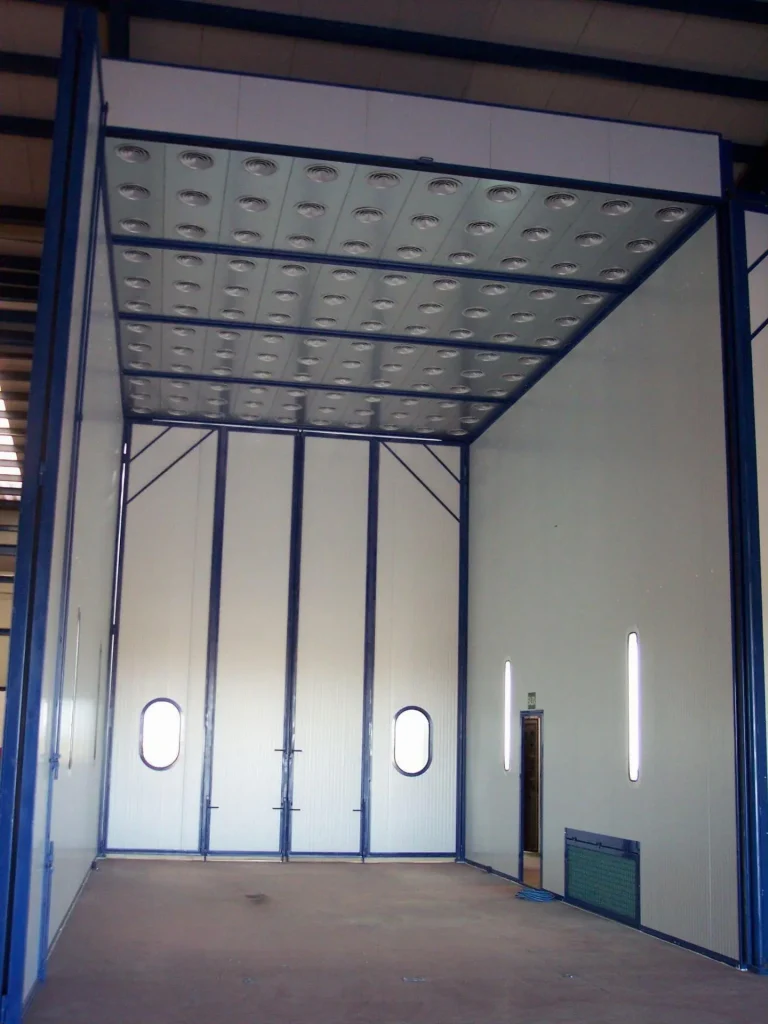

It is in charge of distributing the air supplied by the supply unit. It is made of a sandwich panel reinforced by laminated profiles and its lower part contains the pre-filters and high efficiency filters, which guarantee the cleanliness of the introduced air

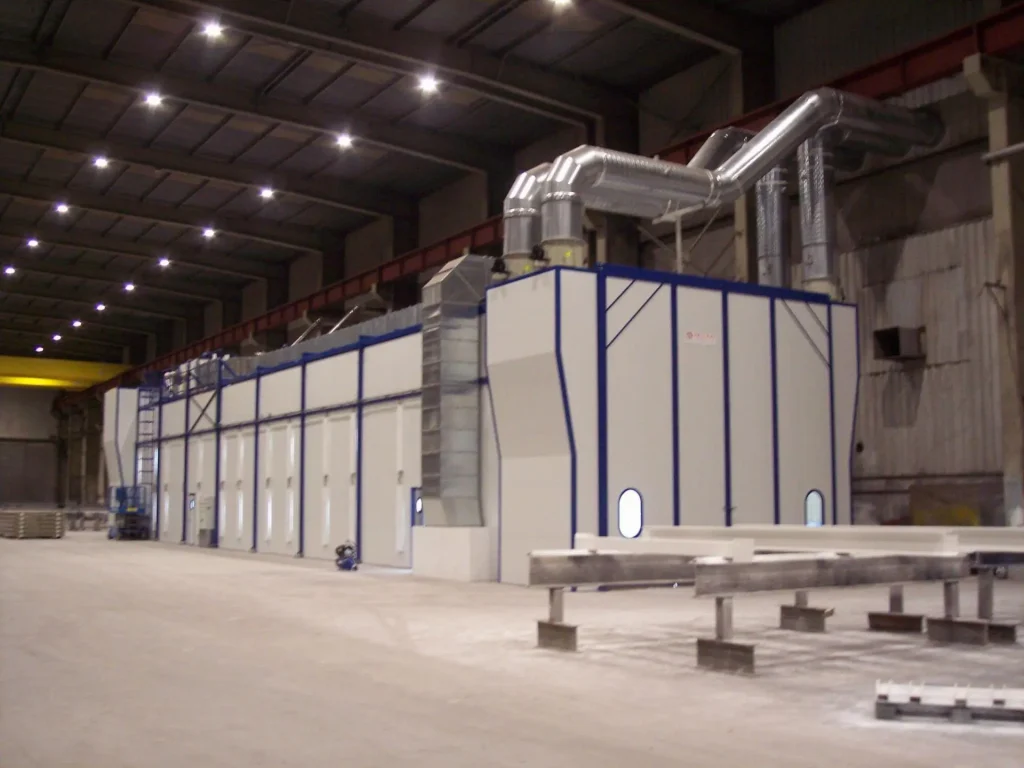

It is done by fans with motor outside the air vein. Before going outside through the ducts or chimneys. The air is subjected to a double filtration stage, for the retention of the pigments, in order to comply with the current regulations on particulate emissions to the outside

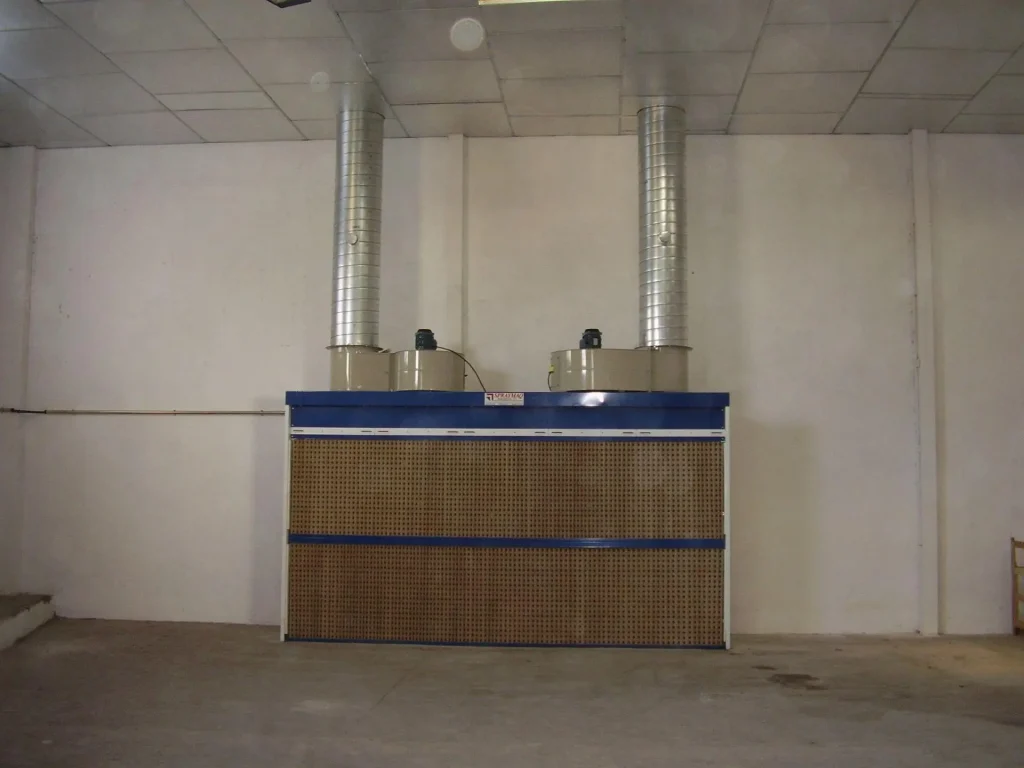

Spraymaq Dry Walls are constructed of folded sheet metal panels, protected by a layer of baked-on paint. The air extraction is carried out by means of a helical fan with an external motor, outside the air vein.
The motors are of the “explosion-proof” type, the walls are designed with a special interior system of deflectors and bottoms that achieve a correct orientation of the air flow along the entire surface

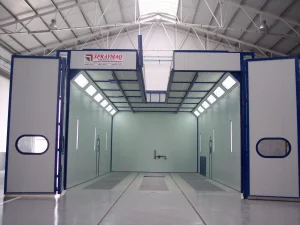

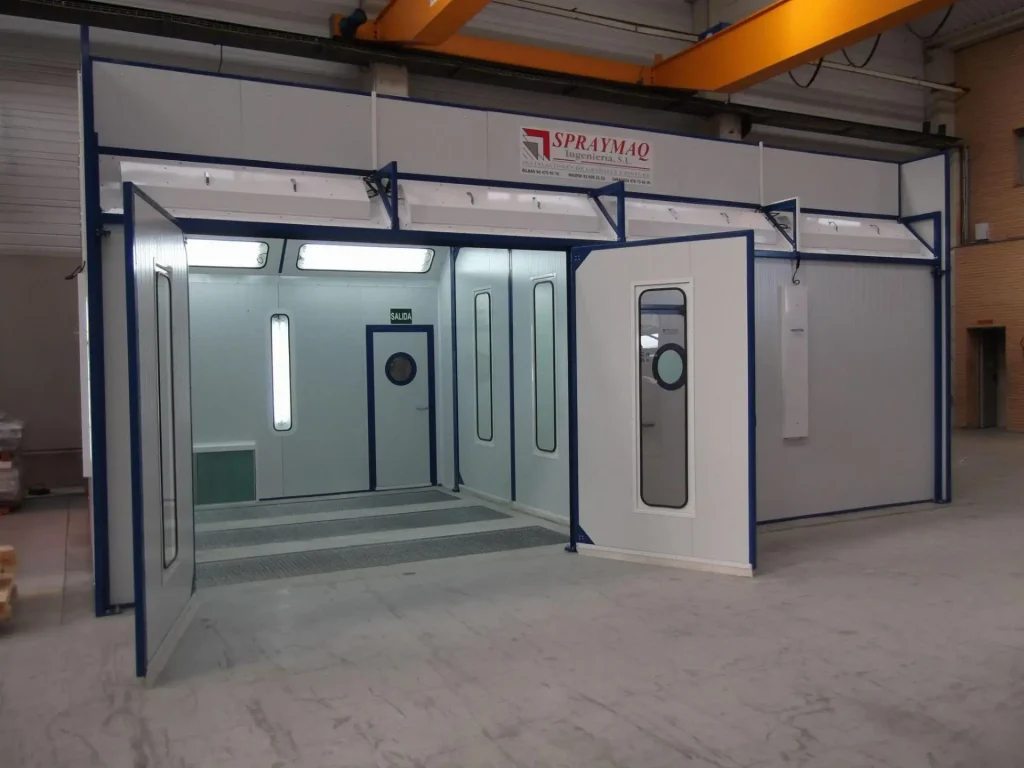

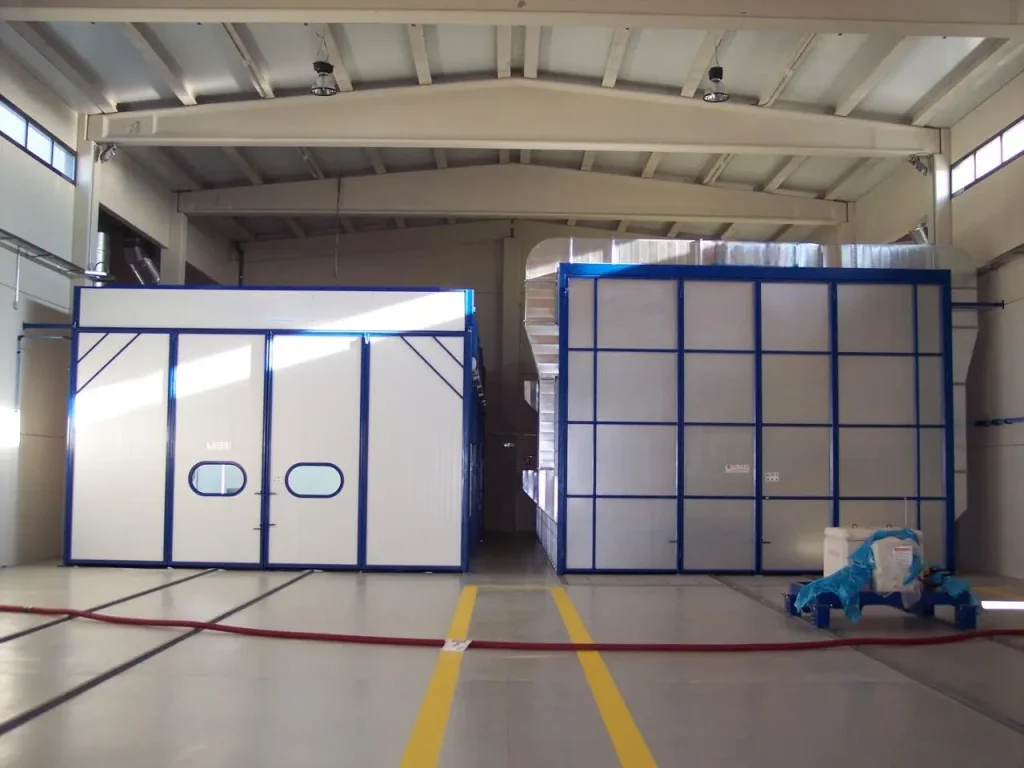

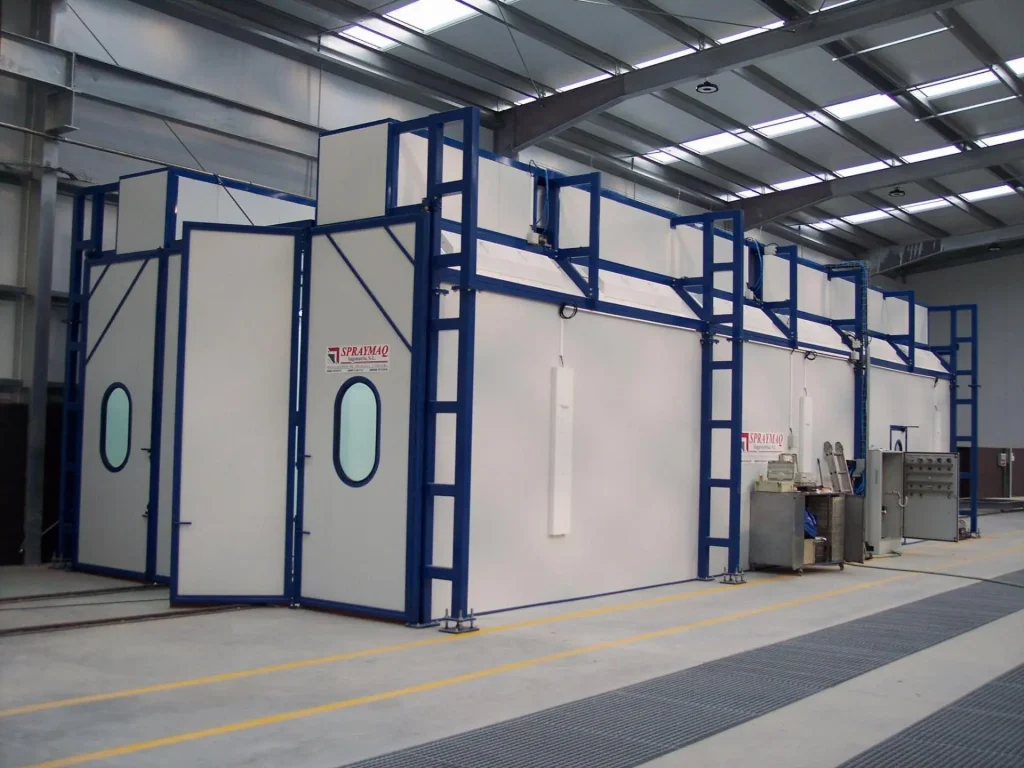

Complete range of paint drying oven booths, pressurized, under vacuum, with tempered air and baking position, with different types of ventilation, vertical, horizontal with or without pits, in standard execution, or adapted to customer needs. Paint spray booths consist of:
Enclosure and structure, Lighting, Air supply units, with natural gas, diesel oil or propane burners. Distribution plenum, Outlet filtration system, dual stage. Extraction fans, Helical, or Centrifugal. Electrical control panel, for the command and control of all the components of the booth.

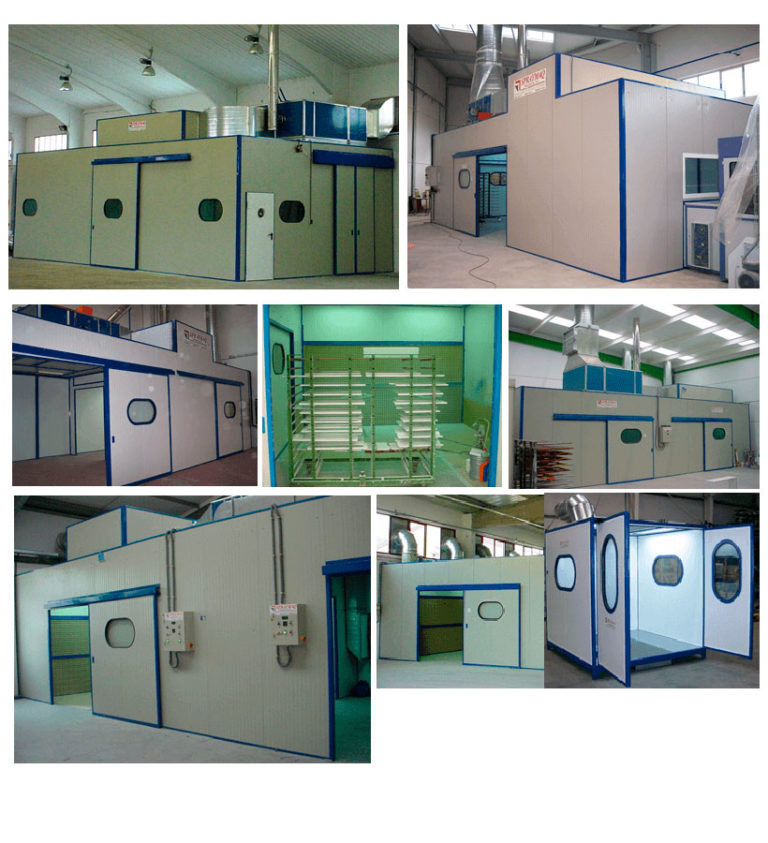

Booths for furniture varnishing and fine carpentry. pressurized, in depression, with tempered air and baked position, with different types of ventilation, vertical, horizontal, optional with water-based drying system.
Made in commercial profiles, by means of screwed joints. Sandwich enclosure panel filled with polyurethane foam or rock wool.

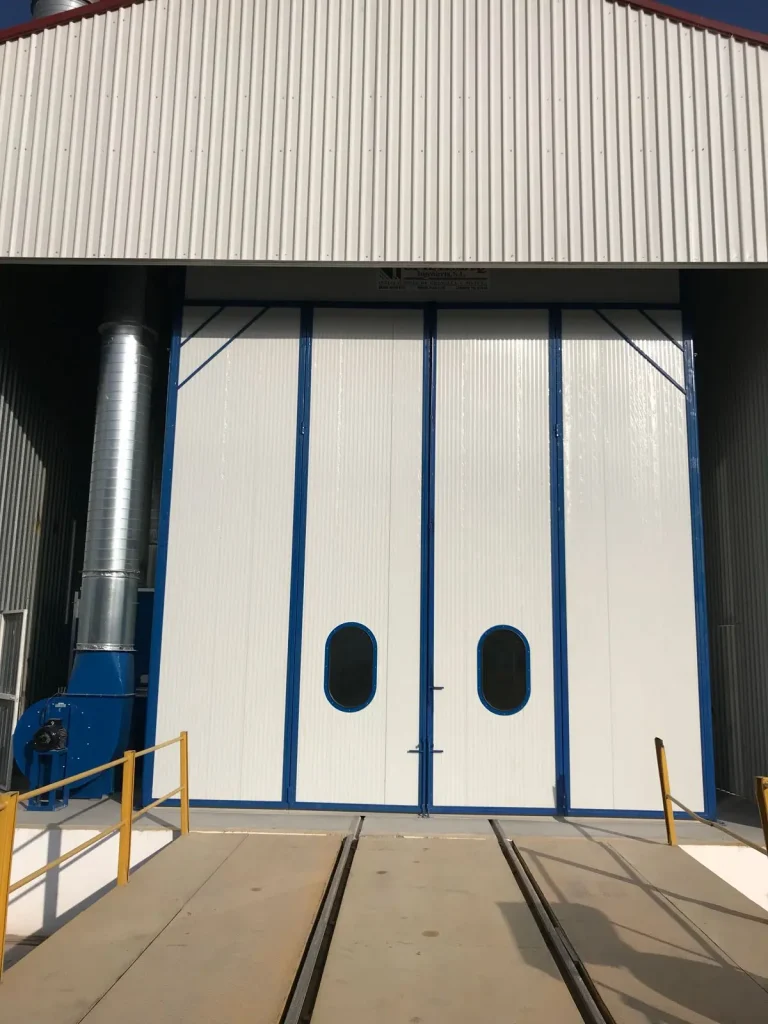

Folding doors with 2 or 4 leaves, or mechanically operated. Watertight lighting, mounted on the outside, outside the solvent evaporation area by means of fluorescent screens, so as to achieve homogeneous lighting without shadows
Air distribution plenum, which filters and homogenizes the air flow into the booth. Supply groups with natural gas, diesel or propane burners.

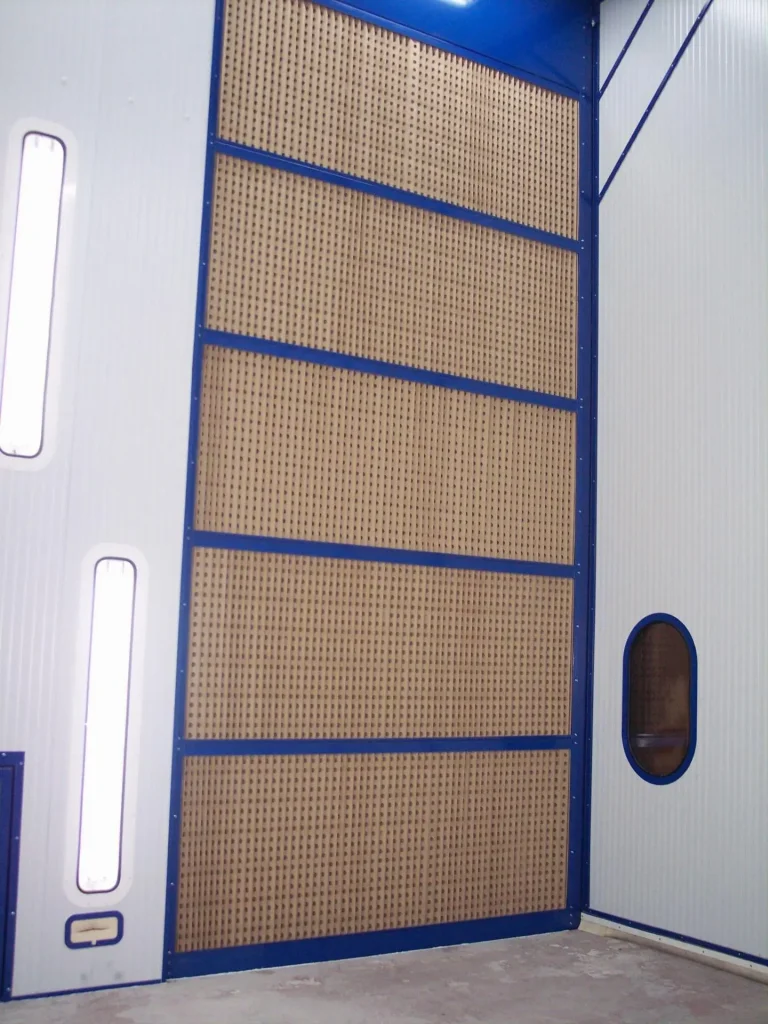

Exhaust filtration system. It is in charge of filtering the air before its evacuation to the outside, eliminating the pigments and solid particles that it may contain. This filtration of the foul air is carried out by means of double-stage filtering walls. With its corresponding chimneys and extraction fans.
Electrical panel, for the command and control of all the components of the booth.
Electrical panel, for the command and control of all the components of the booth.
In this section you will find all our open booths for painting, decide which is the one that best suits your company and if you have doubts call us! We will offer you the best resources for painting in open area at the best selling price!
The walls are designed with a special interior system of baffles and bottoms that achieve a correct orientation of the air flow along the entire surface

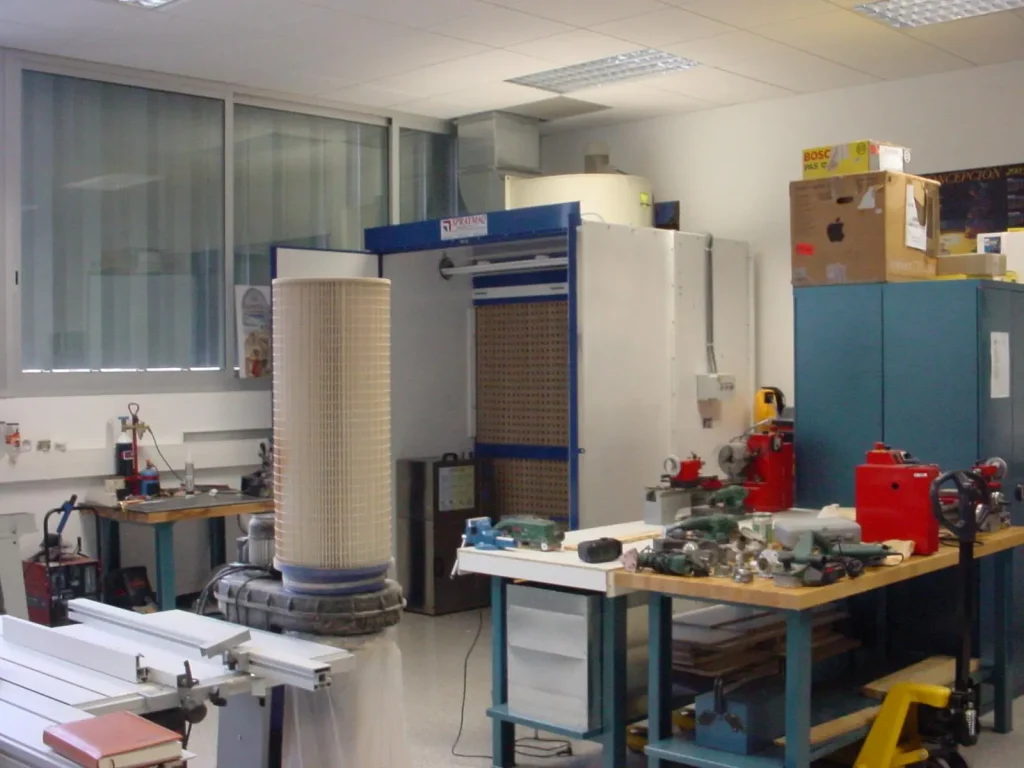

Walls and open booths, with dry filters, for varnishing or painting of small parts.
Different models: single, double, portable, with active carbon. We design according to your needs.

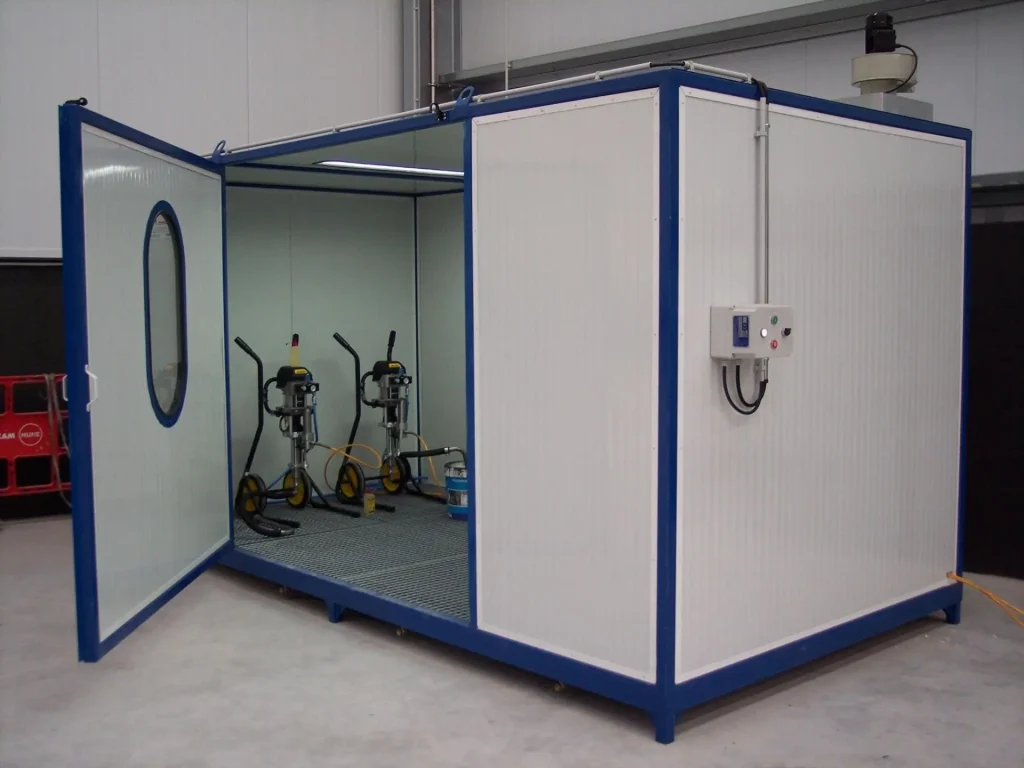

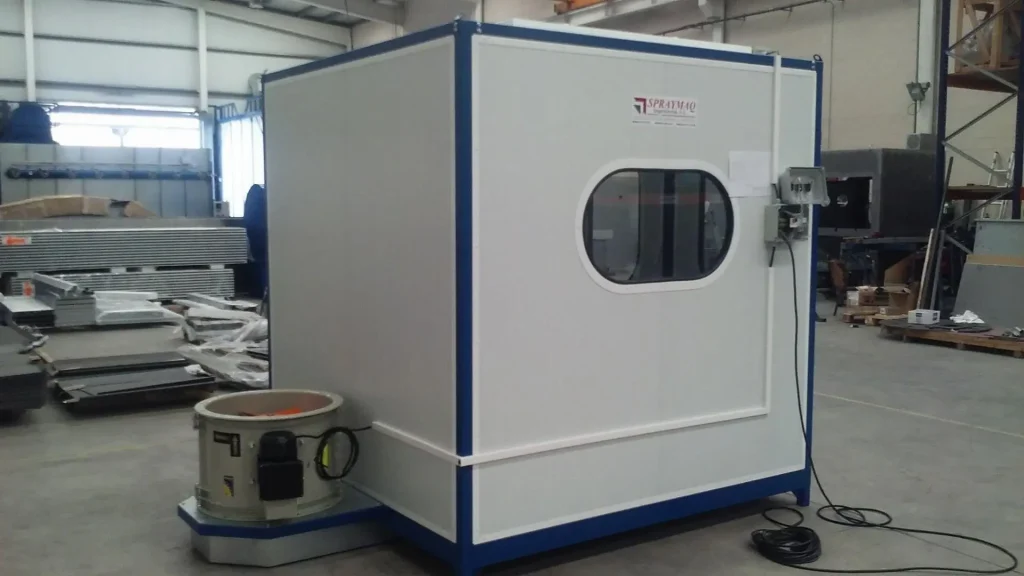

Enclosures designed to be transported to the work area, their small dimensions do not prevent them from being equipped with all the features of a conventional booth.
The paint preparation boxes, allow to keep the work area free and clean, performing the preparation work in a suitable enclosure with the corresponding lighting and ventilation.

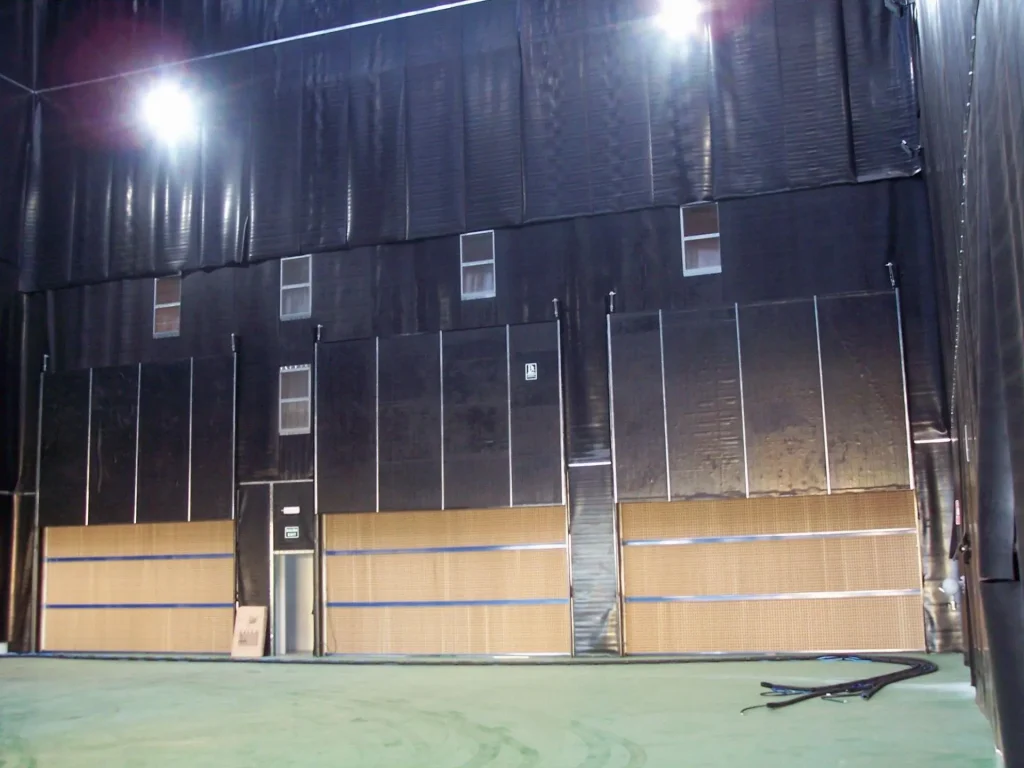

Open areas with lower suction, specially designed for painting large parts. Walls for painting and varnishing of small parts, in standard execution, or adapted to customer needs.

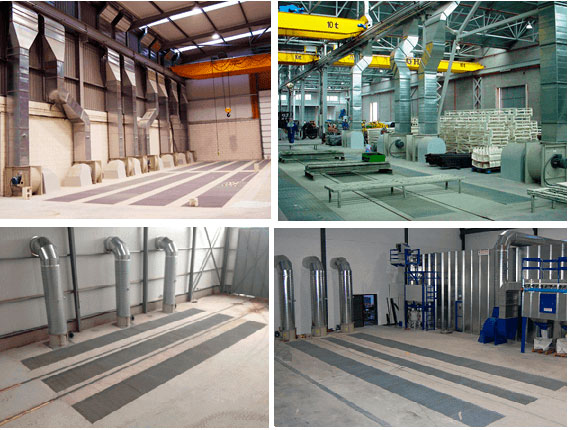

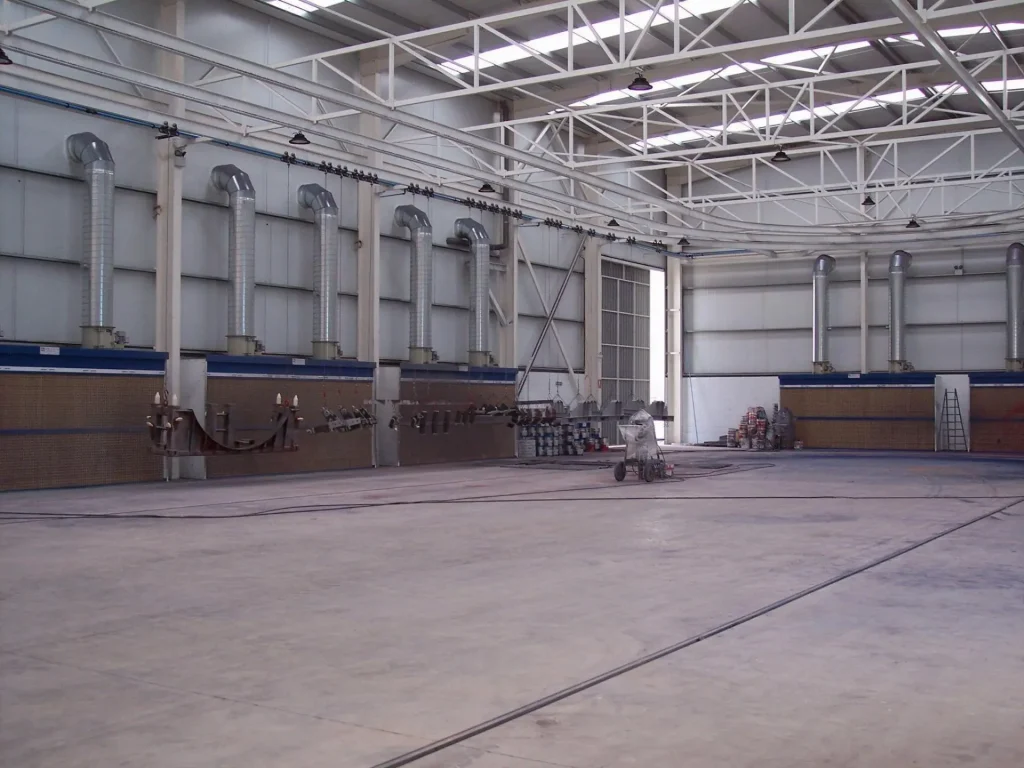

Open painting areas, bottom suction through pits. Recommended for the painting of machinery and large pieces of metal boilermaking, allowing an open space, wide, comfortable and with good mobility of the pieces, (directly with the overhead crane), so that an optimal use of industrial space is achieved.
They are equipped with helicoidal or centrifugal fans, bottom suction, through pits covered with walkable tramex, with double filtration stage, for wet and dry pigments. They can be combined with suction walls.
As you have seen, we have a wide range of installations and spray booths. However, Spraymaq is not only that, but we also have
Spraymaq
When it comes to the finishing industry, the quality of the result is paramount. Obtaining perfect, uniform and long-lasting finishes is essential to meet customer expectations and remain competitive in the marketplace. This is where Spraymaq spray booths become an indispensable ally to propel your business to success
At Spraymaq, we excel in using state-of-the-art technology in all our spray booths. Our advanced filtration systems ensure a clean and safe working environment, avoiding cross-contamination and guaranteeing exceptional results.
In addition, our booths adapt to different types of paint, whether solvent or water-based, offering versatility in finishing and the possibility of working with a wide range of coatings.
Efficiency is a priority in the finishing industry, and Spraymaq spray booths are designed to ensure a streamlined and productive process. Our automated systems and integration of robotics technology allow for uniform and precise application of coatings, minimizing paint waste and reducing cycle times.
In addition, our booths feature sanding and surface preparation areas, which streamlines the finishing process and ensures a perfect base for paint application.
At Spraymaq, the safety of our customers and their equipment is a priority. Our spray booths are designed to maintain a safe working environment, reducing workers’ exposure to harmful chemicals and particles.
Advanced filtration systems in our booths ensure the capture of suspended particles, preventing them from being dispersed into the air and keeping the environment clean and safe.
Are you looking to improve the quality of your industrial finishes and increase the productivity of your business? Don’t wait any longer! At Spraymaq, we have the most advanced and efficient spray booths on the market.
Our spray booths are equipped with state-of-the-art technology that guarantees a precise and uniform application of coatings, giving you impeccable results in each project.
